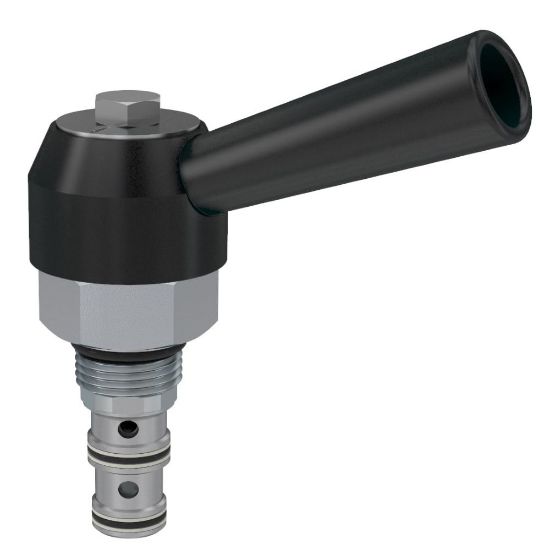

DM103LDV - 3 Way Rotary Type Manual Valve

REGIONAL - Parker’s manually operated 3-way, 2 or 3-position directional control spool valve is capable of flows up to 23 lpm (6 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DM103LDV

$174.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Lever
Seal Material	Fluorocarbon	Detents	2 position detent
Operating Temperature	-15 to +400 °F	Rotation Angle	90 °
Flow Rate	22.5 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Cavity Size	C10-3
Installation Torque	22 Nm	Division	Hydraulic Systems Division
Operation Type	2 position detent	Maximum Operating Pressure	240 bar
Weight	0.11 kg	Configuration	Lever
Detents	N/A	Actuation Type	Rotary
Body Material	N/A	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Seal Material	Fluorocarbon	Valve Material	Stem, stainless steel. All other parts hardened steel.
Maximum Operating Temperature	+400 °F	Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min
Maximum Flow Rate	22.5 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	Spool Type	Maximum Tank Pressure	34.5 bar
Maximum Inlet Pressure Rating	240 bar
