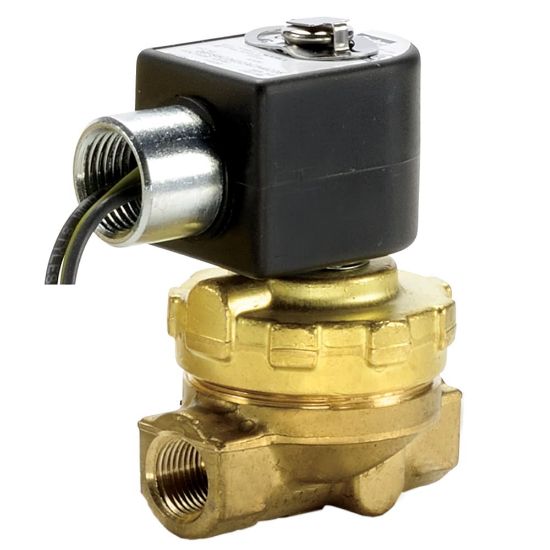

08FS5C2432ACH4C05 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 08FS5C2432ACH4C05

$439.63/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Water, Hot Water, Steam
Function	Normally Closed	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Port Size	1/2	Port Type	NPT
Installation	IOM 7320	Orifice Size	1/2
Body Material	BRASS	Input Voltage	120/60, 110/50
Seal Material	PTFE	Actuation Type	Internally Piloted
Power Consumption	11.0	Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC
Main Flow Coefficient	3.6	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	353	Preventive Maintenance Kit	08FS5C2432ACHR
Maximum Ambient Temperature	131.0	Maximum Pressure Differential	-
Minimum Pressure Differential	1.0	Valve Type	2 Way
Maximum Steam Pressure	125	Maximum Fluid Temperature	353 °F
Power Consumption	11 W	Orifice Size	1/2 inch
Specifications Met	UL	Maximum Pressure Differential	- psi
Actuation Type	Internal Pilot	Preventive Maintenance Kit	08FS5C2432ACHR
Port Type	NPT	Body Material	Brass
Ingress Protection Rating	NEMA 4	Valve Type	2-Way
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Division	Fluid Control Division
Maximum Ambient Temperature	131 °F	Minimum Pressure Differential	1.0 psi
Seal Material	PTFE	Main Flow Coefficient	3.6 Cv
Media	Water	Function	Normally Closed (NC)
Port Size	1/2 inch	Installation	IOM 7320
Maximum Steam Pressure	125 psi	Input Voltage	110/50 VAC
