*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

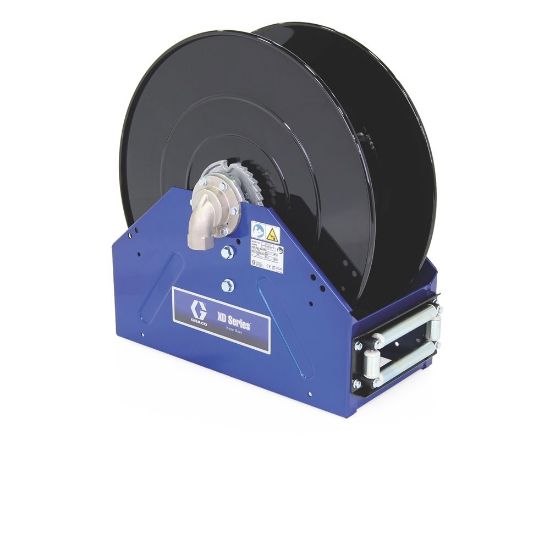

24P313

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24P313

Products specifications

Attribute name	Attribute value
UOM	EA	Bare Reel	1
Series	40	Includes Hose	No
Type	Bare Reel	Hose Inside Diameter	1 Inch
Reel Thread Type	NPT	Maximum Working Pressure	600 psi
Recommended Environment	Indoor;Outdoor	Inlet Size	1 Inch
Overall Width	16.54 Inch	Frame Type	Box
Recommended Fluid Type	Air;Water	Overall Height	26.13 Inch
Inlet Thread Type	NPT	Outlet Size	1 Inch
Dry Weight	116 lb	Model	XD
Overall Length	26.4 Inch	Hose Length	50 ft
Color	Metallic Blue
