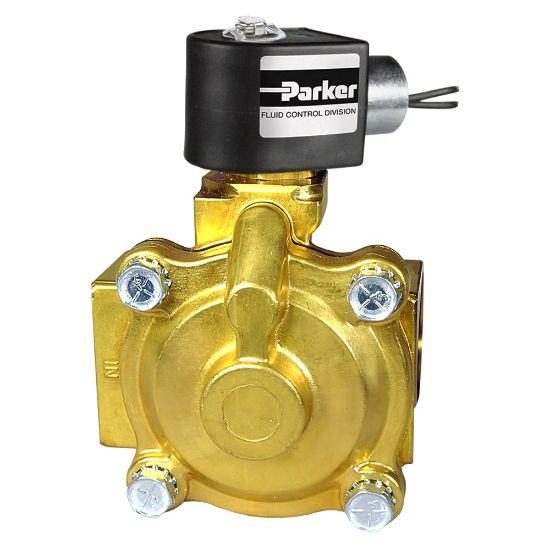

16F24C2164AAF4C05 - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 141 days
Partner Available:	1 Limited Stock

SKU 16F24C2164AAF4C05

$623.41/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Port Type	NPT	Seal Material	NBR
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Media	General Purpose
Function	Normally Closed	Input Voltage	120/60, 110/50
Actuation Type	Internally Piloted	Insulation Class	Class F
Power Consumption	6.0	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	180.0
Maximum Ambient Temperature	130.0	Minimum Pressure Differential	5.0
Installation	IOM 7235	Specifications Met	CE - Low Voltage, EMC
Port Size	1	Orifice Size	1
Main Flow Coefficient	13.0	Preventive Maintenance Kit	16F24C2164AAFR
Maximum Pressure Differential	150 (100 Light Oil)	Input Voltage	120/60, 110/50 VAC
Valve Configuration	2 Way	Media	General Purpose
Function	Normally Closed	Port Size	1 inch
Installation	IOM 7235	Main Flow Coefficient	13.0 Cv
Seal Material	NBR	Minimum Pressure Differential	5.0 psi
Specifications Met	UL, CSA Listed General Purpose Valve	Orifice Size	1 inch
Maximum Fluid Temperature	180.0 °F	Power Consumption	6.0 W
Body Material	Brass	Port Type	NPT
Actuation Type	Internally Piloted	Maximum Pressure Differential	150 (100 Light Oil) psi
Preventive Maintenance Kit	16F24C2164AAFR	Division	Fluid Control Division
Maximum Ambient Temperature	130.0 °F	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Ingress Protection Rating	NEMA 4,4X	Insulation Class	Class F
