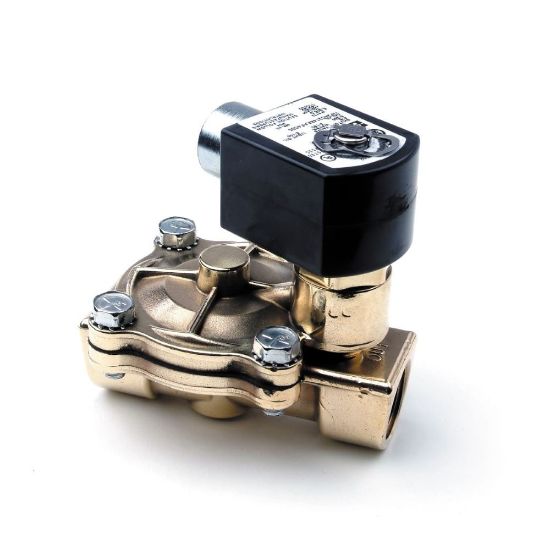

12F24C2148AAF4C05 - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 12F24C2148AAF4C05

$405.41/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Closed	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Port Size	3/4	Port Type	NPT
Installation	IOM 7235	Orifice Size	3/4
Body Material	BRASS	Input Voltage	120/60, 110/50
Seal Material	NBR	Actuation Type	Internally Piloted
Insulation Class	Class F	Power Consumption	6.0
Specifications Met	CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	6.5	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	180.0	Preventive Maintenance Kit	12F24C2148AAFR
Maximum Ambient Temperature	130.0	Maximum Pressure Differential	250 / 150 (Water)
Minimum Pressure Differential	5.0	Division	Fluid Control Division
Media	General Purpose	Port Size	3/4 inch
Port Type	NPT	Input Voltage	120/60, 110/50 VAC
Actuation Type	Internally Piloted	Power Consumption	6.0 W
Body Material	Brass	Seal Material	NBR
Specifications Met	CE - Low Voltage, EMC	Maximum Pressure Differential	250 / 150 (Water) psi
Ingress Protection Rating	NEMA 4,4X	Function	Normally Closed
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Maximum Fluid Temperature	180.0 °F
Minimum Pressure Differential	5.0 psi	Main Flow Coefficient	6.5 Cv
Installation	IOM 7235	Orifice Size	3/4 inch
Insulation Class	Class F	Valve Configuration	2 Way
Preventive Maintenance Kit	12F24C2148AAFR	Maximum Ambient Temperature	130.0 °F
