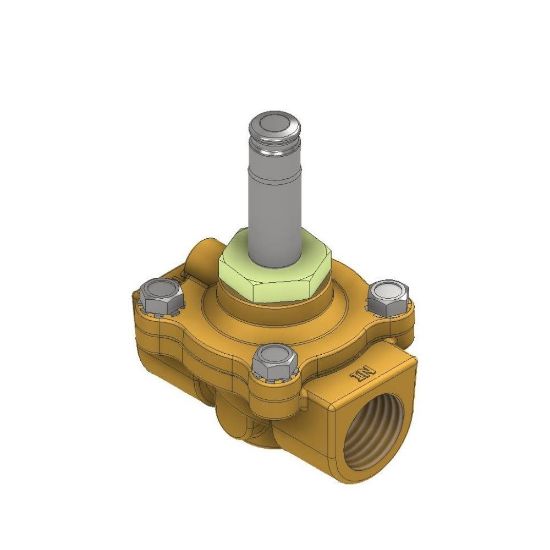

08F23C2140ACF - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	4 in stock

SKU 08F23C2140ACF

$238.43/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Closed	Coil Type	Requires Coil from Chart 4
Port Size	1/2	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8
Body Material	BRASS	Input Voltage	Pressure Vessel Only
Seal Material	NBR	Actuation Type	Direct Lift
Insulation Class	N/A	Power Consumption	11.0
Specifications Met	N/A	Valve Configuration	2 Way
Main Flow Coefficient	4.0	Ingress Protection Rating	N/A
Maximum Fluid Temperature	180.0	Preventive Maintenance Kit	08F23C2140ACFR
Maximum Ambient Temperature	130.0	Maximum Pressure Differential	150.0
Minimum Pressure Differential	0.0	Minimum Pressure Differential	0.0 psi
Seal Material	NBR	Media	General Purpose
Function	Normally Closed	Main Flow Coefficient	4.0 Cv
Installation	IOM 7321	Port Size	1/2 inch
Input Voltage	Pressure Vessel Only	Power Consumption	11.0 W
Valve Configuration	2 Way	Specifications Met	N/A
Maximum Fluid Temperature	180.0 °F	Orifice Size	5/8 inch
Preventive Maintenance Kit	08F23C2140ACFR	Port Type	NPT
Maximum Pressure Differential	150.0 psi	Actuation Type	Direct Lift
Body Material	Brass	Ingress Protection Rating	N/A
Insulation Class	N/A	Maximum Ambient Temperature	130.0 °F
Division	Fluid Control Division	Coil Type	Requires Coil from Chart 4
