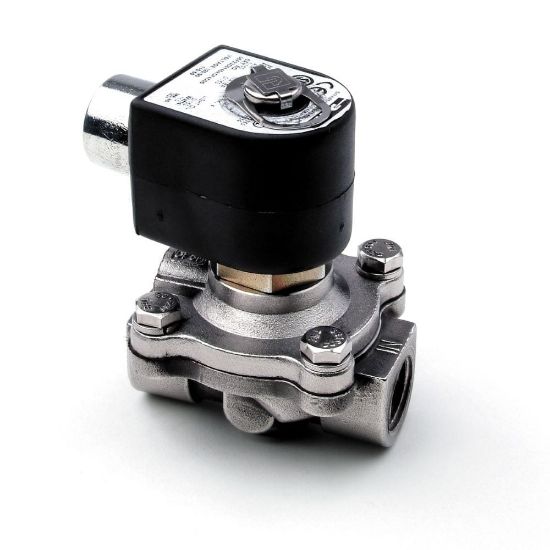

06F23C6140ACF4C05 - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 06F23C6140ACF4C05

$624.45/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Closed	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Port Size	3/8	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8
Body Material	316 Stainless Steel	Input Voltage	120/60, 110/50
Seal Material	NBR	Actuation Type	Direct Lift
Insulation Class	Class F	Power Consumption	11.0
Specifications Met	UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	3.0	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	180.0	Preventive Maintenance Kit	06F23C6140ACFR
Maximum Ambient Temperature	130.0	Maximum Pressure Differential	150.0
Minimum Pressure Differential	0.0	Actuation Type	Direct Lift
Maximum Pressure Differential	150.0 psi	Port Type	NPT
Preventive Maintenance Kit	06F23C6140ACFR	Body Material	316 Stainless Steel
Insulation Class	Class F	Ingress Protection Rating	NEMA 4,4X
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Maximum Ambient Temperature	130.0 °F
Division	Fluid Control Division	Media	General Purpose
Minimum Pressure Differential	0.0 psi	Seal Material	NBR
Main Flow Coefficient	3.0 Cv	Port Size	3/8 inch
Installation	IOM 7321	Function	Normally Closed
Input Voltage	120/60, 110/50 VAC	Valve Configuration	2 Way
Power Consumption	11.0 W	Maximum Fluid Temperature	180.0 °F
Orifice Size	5/8 inch	Specifications Met	UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC
