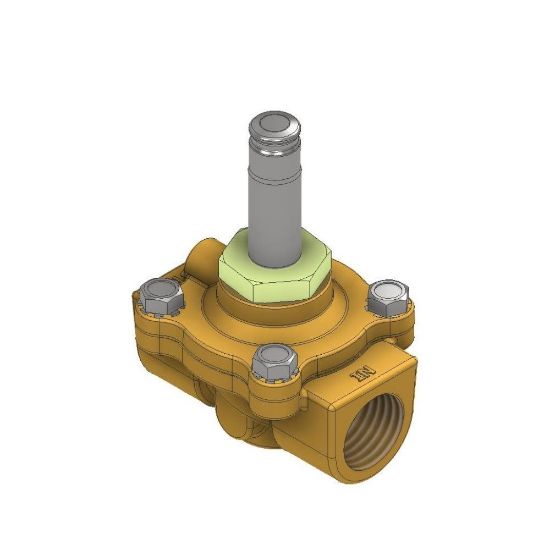

06F23C2140ACF - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	2 Limited Stock

SKU 06F23C2140ACF

$167.57/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	3/8
Coil Type	Requires Coil from Chart 4	Body Material	BRASS
Seal Material	NBR	Media	General Purpose
Function	Normally Closed	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8
Input Voltage	Pressure Vessel Only	Actuation Type	Direct Lift
Insulation Class	N/A	Power Consumption	11.0
Specifications Met	N/A	Valve Configuration	2 Way
Main Flow Coefficient	3.0	Ingress Protection Rating	N/A
Maximum Fluid Temperature	180.0	Preventive Maintenance Kit	06F23C2140ACFR
Maximum Ambient Temperature	130.0	Maximum Pressure Differential	150.0
Minimum Pressure Differential	0.0	Specifications Met	N/A
Actuation Type	Direct Lift	Preventive Maintenance Kit	06F23C2140ACFR
Maximum Pressure Differential	150.0 psi	Port Type	NPT
Orifice Size	5/8 inch	Body Material	Brass
Ingress Protection Rating	N/A	Insulation Class	N/A
Division	Fluid Control Division	Maximum Ambient Temperature	130.0 °F
Coil Type	Requires Coil from Chart 4	Minimum Pressure Differential	0.0 psi
Seal Material	NBR	Main Flow Coefficient	3.0 Cv
Port Size	3/8 inch	Media	General Purpose
Installation	IOM 7321	Function	Normally Closed
Valve Configuration	2 Way	Power Consumption	11.0 W
Maximum Fluid Temperature	180.0 °F	Input Voltage	Pressure Vessel Only
