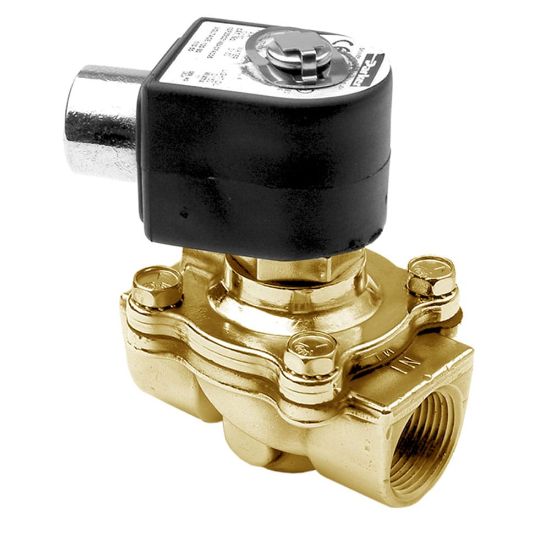

06F22C2140AAF4C05 - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 06F22C2140AAF4C05

$181.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	3/8
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Body Material	BRASS
Seal Material	NBR	Media	General Purpose
Function	Normally Closed	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8
Input Voltage	120/60, 110/50	Actuation Type	Internally Piloted
Insulation Class	Class F	Power Consumption	11.0
Specifications Met	UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	3.0	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	180.0	Preventive Maintenance Kit	06F22C2140AAFR
Maximum Ambient Temperature	77.0	Maximum Pressure Differential	135 (200 Air, Inert Gas)
Minimum Pressure Differential	5.0	Seal Material	NBR
Main Flow Coefficient	3.0 Cv	Minimum Pressure Differential	5.0 psi
Function	Normally Closed	Valve Configuration	2 Way
Port Size	3/8 inch	Media	General Purpose
Installation	IOM 7321	Input Voltage	120/60, 110/50 VAC
Maximum Fluid Temperature	180.0 °F	Power Consumption	11.0 W
Specifications Met	UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC	Port Type	NPT
Orifice Size	5/8 inch	Actuation Type	Internally Piloted
Preventive Maintenance Kit	06F22C2140AAFR	Maximum Pressure Differential	135 (200 Air, Inert Gas) psi
Body Material	Brass	Ingress Protection Rating	NEMA 4,4X
Insulation Class	Class F	Division	Fluid Control Division
Maximum Ambient Temperature	77.0 °F	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
