DSL101NR - 2 Way Poppet Type Solenoid Valve

Name: DSL101NR - 2 Way Poppet Type Solenoid Valve
SKU: DSL101NR
Price: 77.21 USD
Availability: LimitedAvailability

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

34 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DSL101NR

$77.21/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Open
Seal Material	D-Ring (Standard)	Actuation Type	Electrical
Wire Mesh Screen Included	No	Flow Rate	15 GAL/MIN, 60 L/MIN
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Leak Rate	5 drops/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Coil Type	5/8" Super Coil
Maximum Flow Rate	15 Gal/min	Operation Type	Solenoid operated
Division	Hydraulic Systems Division	Flow Direction	Side to Nose (2-1)
Wire Mesh Screen Included	No	Function	2-way
Response Time	35 ms	Maximum Operating Temperature	+200 °F
Maximum Inlet Pressure Rating	250 bar	Seal Material	D-Ring (Standard)
Valve Material	All parts steel. All operating parts hardened steel	Override Functionality	N/A
Mounting Type	Screw in cartridge valve	Adjustment Mechanism	N/A
Cavity Size	C10-2	Minimum Operating Temperature	-37 °C
Input Voltage	85% of rated voltage at 72°F (20°C) min	Free Reverse Flow	Yes
Body Material	N/A	Weight	0.41 lb
Installation Torque	37-41 lb-ft	Maximum Operating Pressure	250 bar
Actuation Type	Electrical	Flow Rate	60 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-37 to +93 °C	Coil Nut Tightening Torque	7-10 Nm
Configuration	Normally Open

Customers who bought this item also bought

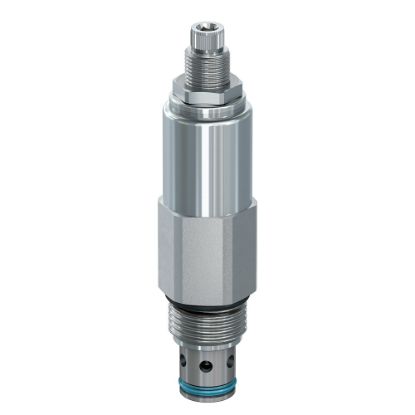

RDH103S10 - Direct Acting Differential Area Relief Valves

Parker’s direct acting differential area relief valves are for fast response intermittent applications and work up to 380 bar (5500 psi) and 151 lpm (40 gpm). These valves have lower leakage rates and pressure rise than standard direct acting reliefs.

$46.76/each

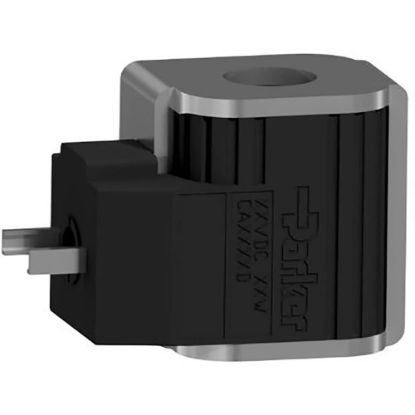

CAS115D - 5/8" Super Coil
