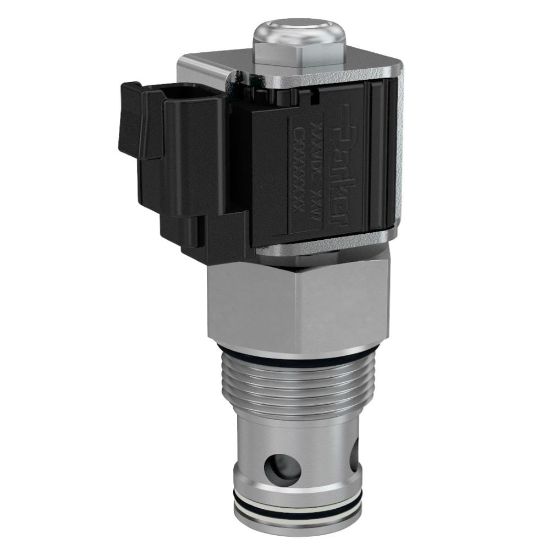

GS068010N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS068010N

$278.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
Flow Rate	75 GAL/MIN, 285 L/MIN	ANSI Flange Class	N/A
Application	Mobile Hydraulics, Industrial Hydraulics	Mounting Type	Screw in cartridge valve
Override Functionality	Detented	Specifications Met	N/A
Flow Rate	75 Gal/min	Actuation Type	Electrical, Manual
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-34 to +121 °C
Configuration	Normally Closed	Coil Nut Tightening Torque	3 lb-ft
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Body Material	N/A
Weight	0.88 lb	Maximum Operating Pressure	210 bar
Installation Torque	80 lb-ft	Operation Type	Solenoid operated, Manually operated
Division	Hydraulic Systems Division	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Seat Material	Steel	Coil Type	1/2" Super Coil Low Watt (CCS)
Maximum Flow Rate	285 L/min	Maximum Operating Temperature	+121 °C
Maximum Inlet Pressure Rating	3000 psi	Leak Rate	9 drops/min
Flange Face Type	N/A	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Bore Diameter	N/A
Connection Size	N/A	Function	2-way
Wire Mesh Screen Included	No	Flow Direction	Bi-directional
Response Time	50 ms	Input Voltage	85% of rated voltage at 72°F (20°C) min
Minimum Operating Temperature	-34 °C	Cavity Size	C16-2
