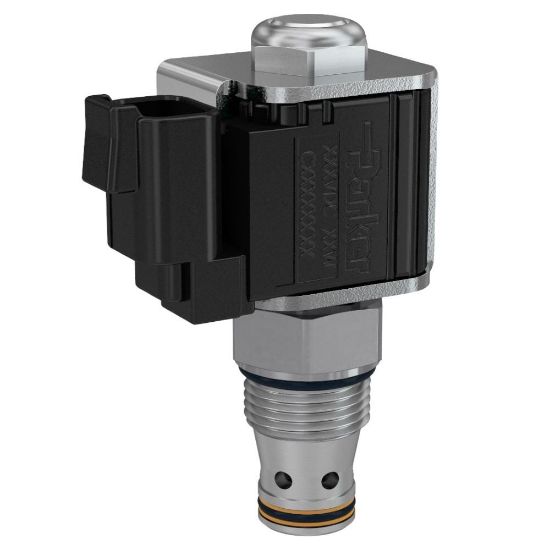

GS048620N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS048620N

$265.08/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
Flow Rate	18 GAL/MIN, 68 L/MIN	Response Time	50 ms
Bore Diameter	N/A	Flow Direction	Bi-directional
Function	2-way	Connection Size	N/A
Wire Mesh Screen Included	No	Input Voltage	85% of rated voltage at 72°F (20°C) min
Cavity Size	2R	ANSI Flange Class	N/A
Specifications Met	N/A	Minimum Operating Temperature	-30 °F
Override Functionality	Detented	Mounting Type	Screw in cartridge valve
Flow Rate	68 L/min	Configuration	Normally Open
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Application	Mobile Hydraulics, Industrial Hydraulics	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Electrical, Manual	Weight	0.17 kg
Maximum Operating Pressure	5000 psi	Body Material	N/A
Coil Nut Tightening Torque	4.1 Nm	Operation Type	Solenoid operated, Manually operated
Division	Hydraulic Systems Division	Installation Torque	34 Nm
Seat Material	Steel	Coil Type	1/2" Super Coil High Watt (CCP)
Maximum Flow Rate	18 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Seal Material	Nitrile
Leak Rate	5 drops/min	Maximum Inlet Pressure Rating	5000 psi
Flange Face Type	N/A	Valve Material	All parts steel. All operating parts hardened steel
