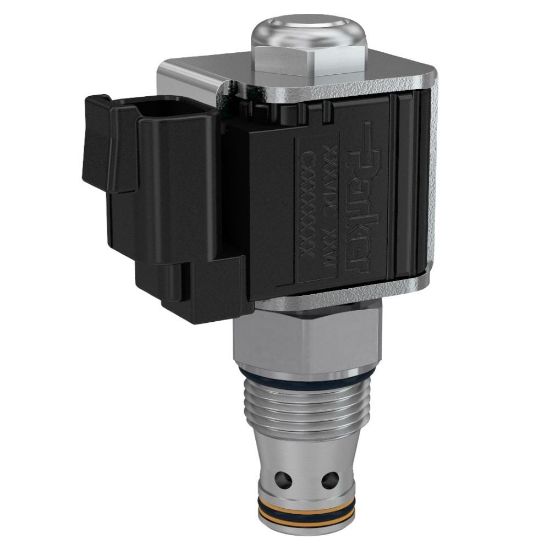

GS048520N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS048520N

$249.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
Flow Rate	18 GAL/MIN, 68 L/MIN	Seat Material	Steel
Maximum Flow Rate	68 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	1/2" Super Coil Low Watt (CCS)	Seal Material	Nitrile
Leak Rate	5 drops/min	Maximum Inlet Pressure Rating	3000 psi
Flange Face Type	N/A	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Bore Diameter	N/A
Flow Direction	Bi-directional	Connection Size	N/A
Function	2-way	Wire Mesh Screen Included	No
Response Time	50 ms	Input Voltage	85% of rated voltage at 72°F (20°C) min
ANSI Flange Class	N/A	Specifications Met	N/A
Minimum Operating Temperature	-34 °C	Override Functionality	Detented
Cavity Size	2R	Mounting Type	Screw in cartridge valve
Flow Rate	68 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Application	Mobile Hydraulics, Industrial Hydraulics	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Normally Open
Maximum Operating Pressure	210 bar	Weight	0.37 lb
Coil Nut Tightening Torque	3 lb-ft	Body Material	N/A
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Division	Hydraulic Systems Division	Installation Torque	34 Nm
