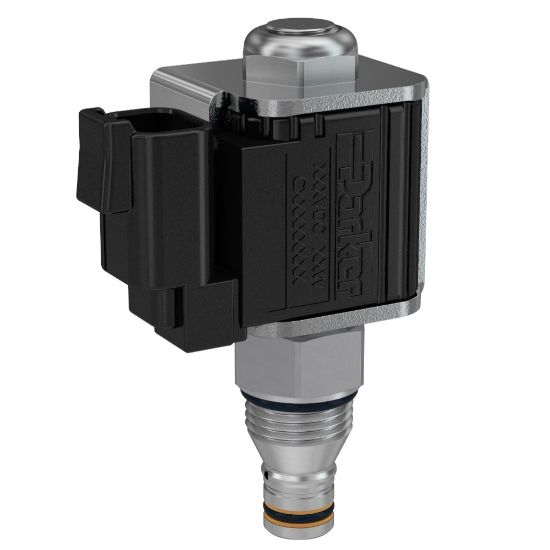

GS027801N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS027801N

$156.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	Yes
Flow Rate	0.45 GAL/MIN, 1.7 L/MIN	Seal Material	Nitrile
Maximum Inlet Pressure Rating	210 bar	Connection Size	N/A
Response Time	10 ms	Bore Diameter	N/A
Input Voltage	85% of rated voltage at 72°F (20°C) min	Flow Direction	Bi-directional
Function	2-way	Wire Mesh Screen Included	Yes
ANSI Flange Class	N/A	Minimum Operating Temperature	-30 °F
Override Functionality	N/A	Cavity Size	C08-2
Specifications Met	N/A	Mounting Type	Screw in cartridge valve
Application	Mobile Hydraulics, Industrial Hydraulics	Flow Rate	1.7 L/min
Configuration	Normally Open	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Coil Nut Tightening Torque	3 lb-ft	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	3000 psi	Operating Temperature	-30 to +250 °F
Actuation Type	Electrical	Installation Torque	22 lb-ft
Operation Type	Solenoid operated	Weight	0.31 lb
Body Material	N/A	Division	Hydraulic Systems Division
Coil Type	1/2" Super Coil	Seat Material	Delrin®
Leak Rate	0 drops/min	Maximum Flow Rate	0.45 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Flange Face Type	N/A
