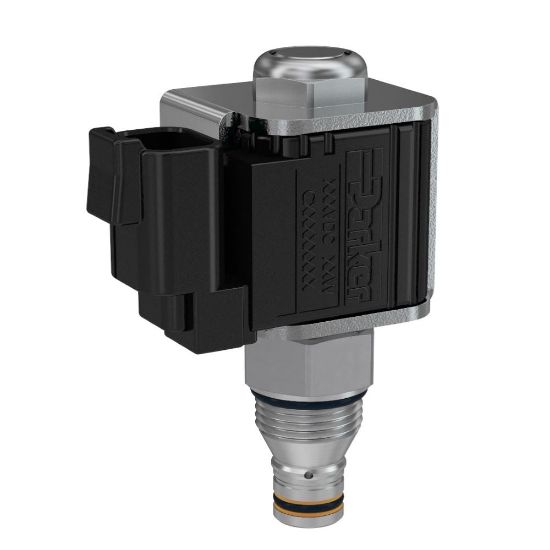

GS027200N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS027200N

$125.96/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	0.45 GAL/MIN, 1.7 L/MIN	Division	Hydraulic Systems Division
Operation Type	Solenoid operated	Leak Rate	5 drops/min
Maximum Operating Temperature	+250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Seat Material	Steel	Coil Type	1/2" Super Coil
Maximum Flow Rate	1.7 L/min	Connection Size	N/A
Maximum Inlet Pressure Rating	210 bar	Flange Face Type	N/A
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
Bore Diameter	N/A	Flow Direction	Bi-directional
Wire Mesh Screen Included	No	Input Voltage	85% of rated voltage at 72°F (20°C) min
Function	2-way	Response Time	10 ms
ANSI Flange Class	N/A	Cavity Size	C08-2
Minimum Operating Temperature	-34 °C	Flow Rate	1.7 L/min
Application	Mobile Hydraulics, Industrial Hydraulics	Specifications Met	N/A
Mounting Type	Screw in cartridge valve	Override Functionality	N/A
Actuation Type	Electrical	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-30 to +250 °F
Configuration	Normally Closed	Coil Nut Tightening Torque	3 lb-ft
Body Material	N/A	Weight	0.14 kg
Maximum Operating Pressure	3000 psi	Installation Torque	30 Nm
