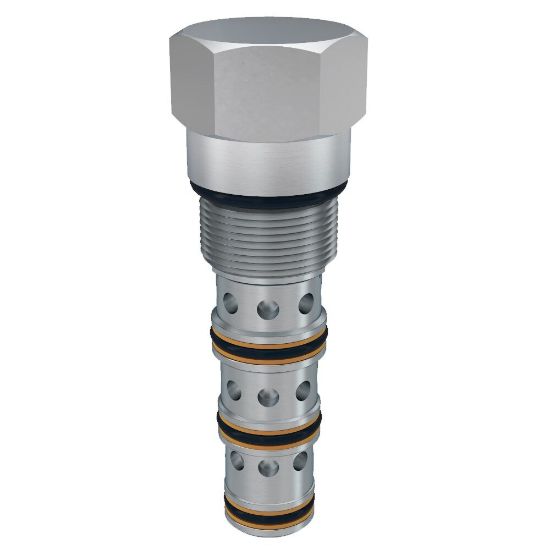

R04A4-10.0N - 2 Way Pilot Operated Directional Control Valves

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU R04A4-10.0N

$327.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Open
Sealed Pilot Included	No	Seal Material	Nitrile
Flow Rate	21 GAL/MIN, 80 L/MIN	Switching Pressure	145 PSI, 10 BAR
Actuation Type	Pilot to Close	Operating Temperature	-34 to +121 °C
Drain Option	External	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Open	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Body Material	N/A	Installation Torque	50 Nm
Weight	0.17 kg	Maximum Operating Pressure	6000 psi
Pilot Location	External	Cavity Size	C10-4
Minimum Operating Temperature	-34 °C	Switching Pressure	145 psi
Flow Rate	21 Gal/min	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Maximum Inlet Pressure Rating	420 bar
Flow Direction	2-3 or 3-2	Function	Diverter
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Pilot operated
Standard Flow Rate Setting	12 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Maximum Flow Rate	80 L/min
Division	Hydraulic Cartridge Systems Division	Sealed Pilot Included	No
Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min
