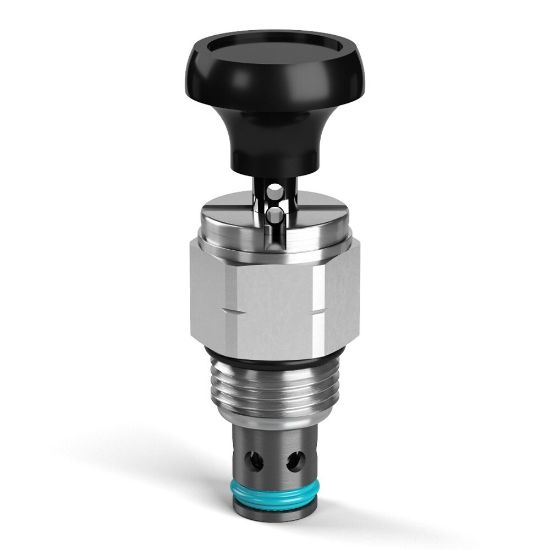

DL081K - 2 Position, 2 Way Normally Closed Poppet Type Manual Valve

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	12 in stock

SKU DL081K

$99.53/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	8 GAL/MIN, 30 L/MIN
Actuation Type	Knob	Seal Material	D-Ring (Standard)
Configuration	Normally Closed	Connection Type	N/A
Operation Type	Manual	Division	Hydraulic Systems Division
Maximum Operating Pressure	3000 psi	Weight	0.17 lb
Body Material	N/A	Installation Torque	20 Nm
Seal Material	D-Ring (Standard)	Maximum Tank Pressure	80 psi
Maximum Inlet Pressure Rating	210 bar	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	30 L/min	Division	Hydraulic Cartridge Systems Division
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+93 °C	Minimum Operating Temperature	-35 °F
Cavity Size	C08-2	Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet
Connection Size	N/A	Cracking Pressure	N/A
Function	Poppet Type	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Normally Closed
Operating Temperature	-35 to +200 °F	Actuation Type	Knob
Mounting Type	Screw in cartridge valve	Flow Rate	30 L/min
