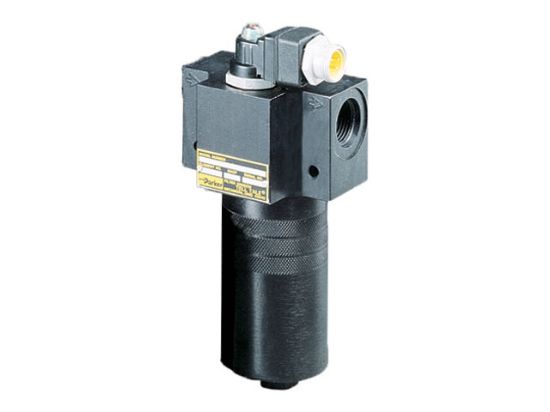

15P110QVE2KS124 - 15P Series High Pressure Filter

15P Series Hydraulic and Lube Oil High Pressure Filter

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 15P110QVE2KS124

Products specifications

Attribute name	Attribute value
UOM	EA	Replacement Element	932612Q
Bypass	50 PSI (3.5 bar)	Nominal Flow Rating	10 GPM (38 LPM)
Port	12 SAE	Element Length	Single
Seals	Fluorocarbon	Pkg Qty	1
Options	SAE-4 drain port on bowl	UOM	EA
Max Pressure - Fatigue MAOP	2000 psi (138 bar)	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Operating Temperature	-15F to 225F (-26C to 107C)	Nominal Filter Rating	10 micron
Max Pressure - Non-Fatigue MAOP	3000 psi (206.9 bar)	Parker Group	Filtration
Parker Division	Hydraulic Filter	Port	12 SAE
Nominal Filter Micron Rating	10 micron	Element Length	Single
Port Type	SAE	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Bypass	50 PSI (3.5 bar)	Seals	Fluorocarbon
Nominal Flow Rating	10 GPM (38 LPM)	Options	SAE-4 drain port on bowl
Series	15P	Filter Type	High Pressure Filter
Filter Media Type	Microglass III	Max Pressure - Non-Fatigue MAOP	3000 PSI (206.9 bar)
Max Pressure - Fatigue MAOP	2000 PSI (138 bar)	Operating Temperature	-15F to 225F (-26C to 107C)
Filter Media Code	10Q

Product resources

15P/30P Series (PDF)
