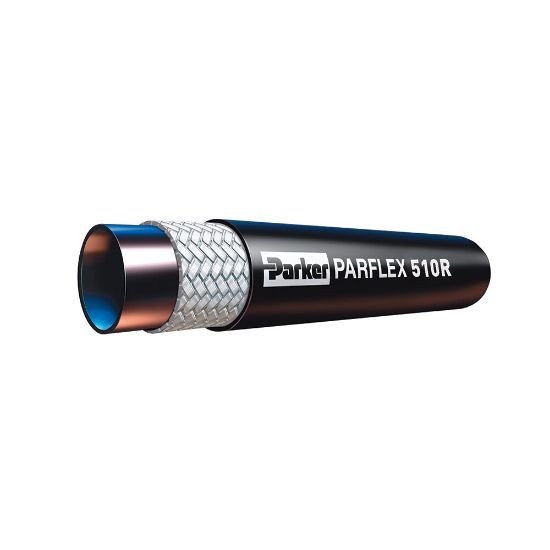

510R-3 - 100R7 Refrigerant Hose - 510R

Parflex 510R hose is a nylon core refrigerant hose compatible with common compressor oils and refrigeration media.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 510R-3

$6.82/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Parflex Division
Application	Hydraulics	Media	Coolants
Maximum Operating Pressure	207 bar	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-40 °C	Specifications Met	SAE 100R7, ANSI/UL 207 and ANSI/UL 1963 listed with 56-series fittings
Weight	0.05 lb/ft	Outside Diameter	10.7 mm
Cover Material	Nylon Blend	Inside Diameter	5 mm
Compatible Fitting	56 Series	Minimum Bend Radius	51 mm
Hose Inner Tube Material	Polyamide (PA)	Hose Reinforcement Material	Fiber
Design Factor	4
