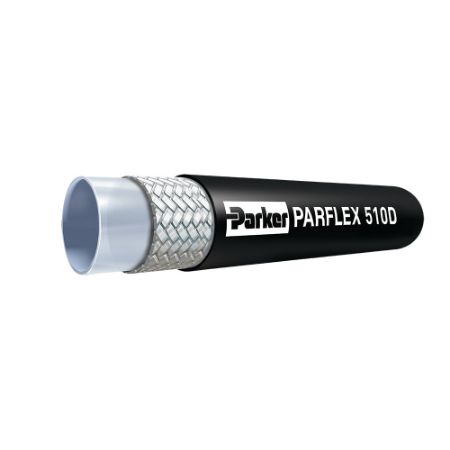

100R7 Hydraulic Hose - 510D
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 510D thermoplastic 100R7 hose stands apart from most of our other SAE 100R7 hydraulic hoses because some sizes use field attachable fittings, in addition to crimp fittings. This improved design allows for quicker installations and maintenance change outs. The 510D hoses features an improved force to flex and a matte cover for low coefficient of friction
Features/Benefits:
• Features low force to flex in sizes -3 through -8•Reduces noise in hydraulic systems
• Twin-line or multi-line bonded hose constructions available
•Formed hose assemblies available
• High density braid for maximum impulse life without loss of flexibility
• Designed to use with quick-connect field attachable fittings or crimp fittings in sizes -3, -4, -6 or -8
• Nylon core material allows for greater chemical compatibility
Applications:
• Medium pressure hydraulic service
• Turf equipment and grounds maintenance
• Utility trucks
• Aerial Lift
Technical Specifications:
• +/- 2% Change in length at maximum working pressure
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Features/Benefits:
• Features low force to flex in sizes -3 through -8•Reduces noise in hydraulic systems
• Twin-line or multi-line bonded hose constructions available
•Formed hose assemblies available
• High density braid for maximum impulse life without loss of flexibility
• Designed to use with quick-connect field attachable fittings or crimp fittings in sizes -3, -4, -6 or -8
• Nylon core material allows for greater chemical compatibility
Applications:
• Medium pressure hydraulic service
• Turf equipment and grounds maintenance
• Utility trucks
• Aerial Lift
Technical Specifications:
• +/- 2% Change in length at maximum working pressure
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Minimum Operating Temperature | Minimum Bend Radius | Hose Reinforcement Material | Application | Specifications Met | Inside Diameter | Maximum Operating Pressure | Outside Diameter | Weight | Division | Size | Compatible Fitting | Maximum Operating Temperature | Hose Inner Tube Material | Media | Design Factor | Cover Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 510D-12 | 97 in stock | 2089 in stock | $11.38/foot | FT | 3/4 | -40 °C | 127 mm | Fiber | Agriculture Equipment | ISO 3949, Type R7-1 | 19 mm | 8.8 MPa | 26.7 mm | 0.25 lb/ft | Parflex Division | -12 | 56 Series | 212 °F | Polyamide (PA) | Petroleum Hydraulic Fluids | 4:1 | Polyurethane | |
| 510D-3 | 344 in stock | 2268 in stock | $3.34/foot | FT | 3/16 | -40 °F | 3/4 inch | Fiber | Aerial Lift | MSHA | 5 mm | 224 bar | 0.403 inch | 0.07 lb/ft | Parflex Division | -3 | 56 Series | 212 °F | Polyamide (PA) | Petroleum Hydraulic Fluids | 4:1 | Polyurethane | |
| 510D-4 | 428 in stock | 9670 in stock | $3.55/foot | FT | 1/4 | -40 °F | 1-1/2 inch | Fiber | Hydraulics | MSHA | 6.3 mm | 210 bar | 11.9 mm | 0.06 lb/ft | Parflex Division | -4 | 51R Series | 212 °F | Polyamide (PA) | Petroleum Hydraulic Fluids | 4:1 | Polyurethane | |
| 510D-5 | Backordered | 1046 in stock | $5.99/foot | FT | 5/16 | -40 °C | 44 mm | Fiber | Forestry | ISO 3949, Type R7-1 | 8 mm | 17.5 MPa | 14.6 mm | 0.11 lb/ft | Parflex Division | -5 | 56 Series | 100 °C | Polyamide (PA) | Petroleum Hydraulic Fluids | 4:1 | Polyurethane | |
| 510D-6 | 682 in stock | 9084 in stock | $4.51/foot | FT | 3/8 | -40 °F | 2 inch | Fiber | Agriculture Equipment | SAE 100R7 | 10 mm | 158 bar | 16.3 mm | 0.10 lb/ft | Parflex Division | -6 | 56 Series | 212 °F | Polyamide (PA) | Petroleum Hydraulic Fluids | 4:1 | Polyurethane | |
| 510D-8 | 892 in stock | 7328 in stock | $5.90/foot | FT | 1/2 | -40 °C | 3 inch | Fiber | Manufacturing | SAE 100R7 | 1/2 inch | 158 bar | 0.810 inch | 0.22 lb/ft | Parflex Division | -8 | 56 Series | 212 °F | Polyamide (PA) | Petroleum Hydraulic Fluids | 4:1 | Polyurethane |
