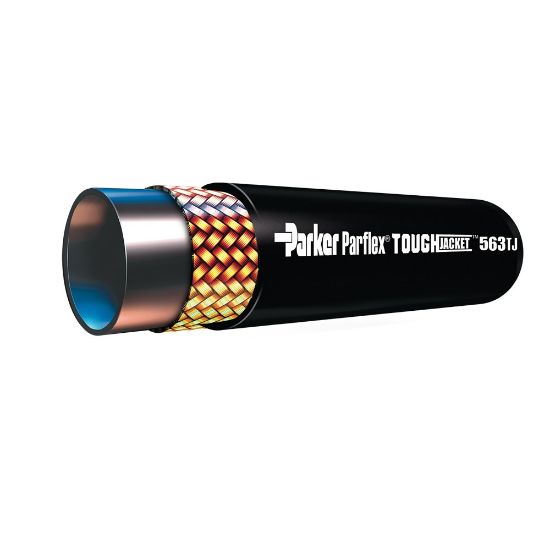

563TJ-4 - 100R17 Hose - 563TJ

PARFLEX 563TJ TOUGHJACKET™ 3,000 PSI HOSE features the best low length change hose under pressure (+/- 1%) with maximum abrasion resistance. Formed hose and/or bonded hose.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	4403 in stock

SKU 563TJ-4

$5.92/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Design Factor	4:1	Media	Water
Hose Cover Type	ToughJACKET™	Cover Material	Polyurethane
Hose Reinforcement Material	1 Braid of High Tensile Steel Wire	Minimum Bend Radius	38.1 mm
Specifications Met	SAE J517 and 100R1, Type AT	Minimum Operating Temperature	-40 °C
Application	Manufacturing	Inside Diameter	1/4 inch
Weight	0.14 kg/m	Maximum Operating Pressure	3045 psi
Outside Diameter	11.9 mm	Size	-4
Division	Parflex Division	Maximum Operating Temperature	250 °F
Hose Inner Tube Material	Copolyester	Compatible Fitting	56 Series
